Your Comfort Is Everything! Since 1964

Bariatric Scooter up to 550 LBS

The Maxima Bariatric Scooter 500 pound capacity now features an upgraded electronics
package to deliver heavy-duty performance at an
exceptional value. Engineered with the bariatric market
in mind, the Maxima features a weight capacity of 500
lbs., deep, comfortable seating and an ergonomically
enhanced design.

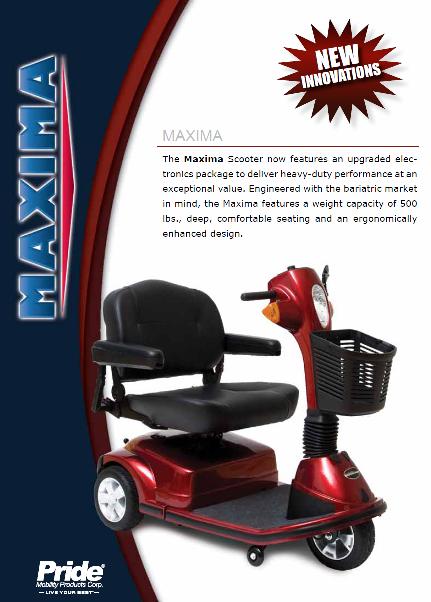

Bariatric Scooter maxima
Specifications
Model number(s) 3W:SC900 4W:SC940
Weight capacity 500 lbs.
Maximum speed1 Up to 5.25 mph
Ground clearance3 3W: 4.25” 4W: 3.25”
Turning radius3 3W: 50.38” 4W: 54”
Overall length3 3W: 46.5” 4W: 46.875”
Overall width3 3W: 28” at armrests/4W: 25.5” at wheels


Tires
Front 3” x 10” solid
Rear 4” x 10” solid
Anti-tips 3-wheel: front & rear
Standard seating Contoured medium-back 22”x18.5”
Seat weight3 40 lbs.
Power elevating seat Option: YES (requires special order)
Suspension 3W:rear 4W: front and rear
Drivetrain Sealed transaxle,
24 volt DC motor
Dual braking system Electronic, regenerative
and electromechanical
Battery charger Off-board, 5 amp
Battery requirements (2) 12V deep-cycle
(AGM or gel cell type recommended)
Compatible battery size(s) NF-22 6 or U-1
Per-charge range1,2 3W: Up to 18 miles with NF-22 batteries
3W: Up to 10 miles with U-1 batteries
4W: Up to 13 miles with NF-22 batteries


Weight
Battery size & weight3,4,5 NF-22: 38 lbs.; U-1: 24.5 lbs. ea.
Total w/o batteries3,7 3W: 171 lbs. 4W: 189 lbs.
Heaviest piece 3W: 66.5 lbs. (rear section)
when disassembled3 4W: 75.5 lbs. (front section)

Solo XT 550 pound scooter Ranger Solo XT550 Scooter

The new SOLO XT 550 accommodates riders up to 550 pounds. The XT550 has reinforced front and rear frames, seat base and seat height adjustment tube as well as front fender supports - making this one of the most rugged scooters available.

The SOLO XT 550 is only 48 inches long, and has a turning radius that turns on a dime making it as maneuverable as most small scooters - so you don’t have to sacrifice indoor operation to get a heavy duty scooter.

SPECIFICATIONS (K0808):

Overall length: 48 inches
Overall width: 24 inches
Ground clearance: 4 inches
Weight of heaviest part: 58 lbs.
Total weight (less batteries): 139 lbs.
Maximum speed: 4 mph forward, 2.5 mph reverse
Range: up to 15 miles**
Maximum weight of operator: 550 lbs.
Seat Height(Manual Adjustment): 18"-19"-20"-21"

**units tested with 150 rider on level, hard surface

FEATURES:

Additional Aluminum Crossbracing
Provides greatly increased frame strength with minimal weight added to the scooter.

Deluxe Extra Large Seat
Wider and deeper than most scooter seats for maximum comfort, these seats also include adjustable width armrests (out to 27"). Available in cloth or vinyl.

More Power
The SOLO XT 550 is equipped with added special gearing to give the rider approximately 20% more power than the already powerful SOLO Scooter.

Patented Disassembly
You won't believe how easy it is. The frame separates in seconds with the pull of a handle.

Transportation
It goes where you go. It's easy to handle and loads within seconds. The heaviest piece weighs only 58 pounds.

Delta Tiller adjustment
The control is at your finger tips, so there's no need to bend over and adjust the tiller angle. Four positive locking positions give you easy accesses and a comfortable ride.

Leg room
Plenty of leg room and a smooth floor make the SOLO XT 550 easy to get on and gives you a comfortable ride.

Aluminum Frame
Aluminum Frame combined with Additional Aluminum Crossbracing gives the SOLO XT 550 more strength with less weight... and no rust.

Easy to use
Fully variable speed control provides smooth starting and stopping. A dial control allows you to set your maximum speed. The electro-mechanical brake comes on automatically when you stop and releases automatically when you start. A key lock is provided for security.

Powerful Transaxle drive
24volt DC motor combined with rear wheel drive provides plenty of power to go where you want to go. The SOLO XT 550 is available in an ultra quiet, fully enclosed, rubber mounted shock resistant transaxle drive assembly.
